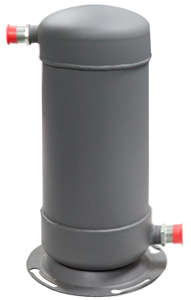

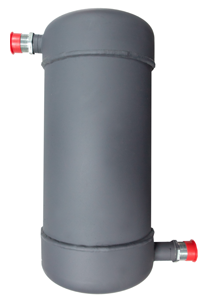

油氣吸附器(Adsorber)
 |
 |
 |
 |
| AD-A | AD-B | AD-C | AD-UC30 |
Adsorber acts as a filtration device in the helium stream circuit of cryopump and helium compressor, providing high purity helium and extend the lifetime of cryopumps.
| AD-A | AD-B | AD-C | AD-UC15 | AD-UC30 | |
| Compressor model |
CTI SC / 8200 / 8500 / 8510 / 9600 |
CTI 8300 Autsin 125W |
CTI 1020 Austin 450 |
ULVAC C10 / C15 | ULVAC C30 |
| 5N5 He Pressure | 250 psi | 250 psi | 250 psi | 250 psi | 174 psi |
| Leak Rate | 5X10-9 mbar l/s | 5X10-9 mbar l/s | 5X10-9 mbar l/s | 5X10-9 mbar l/s | 5X10-9 mbar l/s |
| Connectors | 1/2" Aeroquip Couplings |
1/2" Aeroquip Couplings |
1/2" Aeroquip Couplings |
1/2" Aeroquip Couplings |
1/2" Aeroquip Couplings |
| ▲ Adsorber are fabricated using dehydrated charcoal, glass, wool, felt pads, and Aeroquip couplings. | |||||
| ▲ All adsorbers are carefully cleaned, packed, leak checked, decontaminated, purged and charged with 99.999% pure helium. | |||||
| ▲ Varnishing with non-stripping paint on the external iron housing to ensure the cleanness of clean rooms. | |||||
| ▲ Providing excellent filtration to remaining oil vapor and minor impurities from the helium stream to extend the cryopumps' lifetime and save maintenance costs. | |||||
| ▲ High quality and excellent performance at competitive price. | |||||
| ▲ Guaranteed to meet or exceed OEM specifications. | |||||
| *Routine adsorber replacement is critical to keep cryopump and compressor operating efficiently. | |||||
| If the adsorber is not replaced at the proper interval, it may allow compressor oil to contaminate the helium circuit and cause pump failure. Massive contamination may require expensive overhaul and replacement of components. | |||||
| *Replacement interval 3 years for Model 8500/8510/9600; 1 year for others. | |||||
