Pneumatic straigh-through valve-Tube End
| Pneumatic straight-through valve Specifications: | ||||
| •Pneumatic angle valve with bellows | ||||
| •Operation/actuator:0.75"~2" air to open, spring to close | ||||
| •Over 2" :air to open, air to close | ||||
| •Viton sealing bonnet | ||||
| •Pressure vacuum range: ATM to 1 x 10-9 torr | ||||
| •Bakeout temperature : 204°C max | ||||
| •Material Exposed to Vacuum: Stainless Steel 304 | ||||
| •Operating Temperature:-29∘to +204°C | ||||
| •Power: 110VAC | ||||

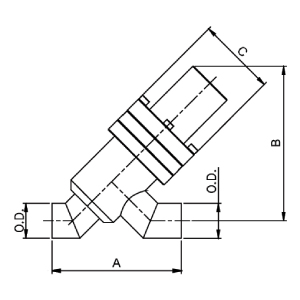

| •Dimensions are in inches. | ||||
| Part No. | Tube O.D. | A | B | C |
| CO-AV-TE16-ST-P | 0.75 | 3.7 | 4.15 | 2.25 |
| CO-AV-TE25-ST-P | 1 | 3.9 | 4.09 | 2.25 |
| CO-AV-TE40-ST-P | 1.5 | 4.82 | 5.61 | 3 |
| CO-AV-TE50-ST-P | 2 | 6.7 | 7.15 | 3.5 |
