Pneumatic angle valve ISO flange
首頁 >

Pneumatic angle valve - ISO flange Specifications :
•Pneumatic angle valve with bellows
•Operaton/actuator: air to open, air to close
•Viton sealing bonnet
•Pressure vacuum range : ATM to 1x10-9 torr
•Bakeout temperature :204°C max
•Material Exposed to Vacuum: Stainless Steel 304
•Operating Temperature: -29∘to +204°C
•Power: 110VAC

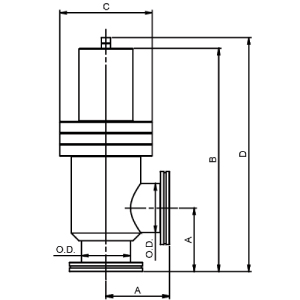

•Dimensions are in inches.
　 　 　 　 　 　
Part No. Flange Ref. Tube O.D. A B C
CO-AV-I63-90-P ISO63 2.5 3.25 10.8 4
CO-AV-I80-90-P ISO80 3 3.5 11.21 4.5
CO-AV-I100-90-P ISO100 4 4.47 14.57 6.5
CO-AV-I160-90-P ISO160 6 6.26 20.28 9.25
CO-AV-I200-90-P ISO200 8 8.26 25.65 9.97
