Pneumatic angle valve-Tube End
| Pneumatic angle valve Specifications: | ||||
| •Pneumatic angle valve with bellows | ||||
| •Operation/actuator: air to open, spring to close | ||||
| •Viton sealing bonnet | ||||
| •Pressure vacuum range : ATM to 1x10-9 torr | ||||
| •Bakeout temperature:204°C max | ||||
| •Material Exposed to Vacuum: Stainless Steel 304 | ||||
| •Operating Temperature: -29∘to +204°C | ||||
| •Power: 110VAC | ||||
| •Dimensions are in inches. | ||||

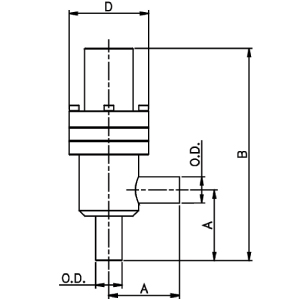

| Part No. | Tube O.D. | A | B | C |
| CO-AV-TE16-90-P | 0.75 | 2 | 6.03 | 2.25 |
| CO-AV-TE25-90-P | 1 | 1.88 | 5.77 | 2.25 |
| CO-AV-TE40-90-P | 1.5 | 2.25 | 7.53 | 3 |
| CO-AV-TE50-90-P | 2 | 3.25 | 10.17 | 3.5 |
